Rigid Underbody
Manufactured with an 8” channel main frame, 3” channel crossmembers on 12” centers

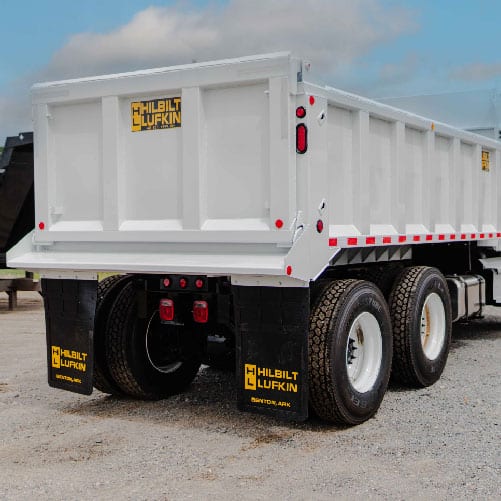

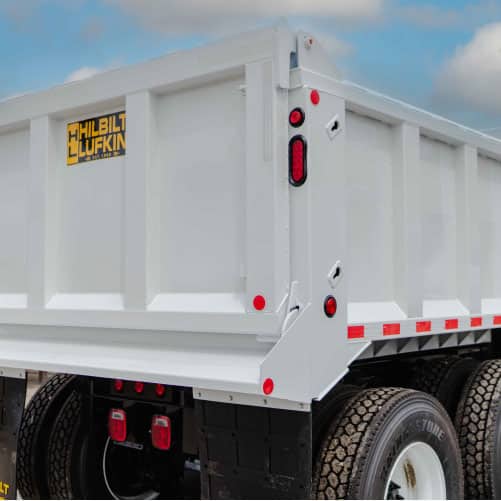

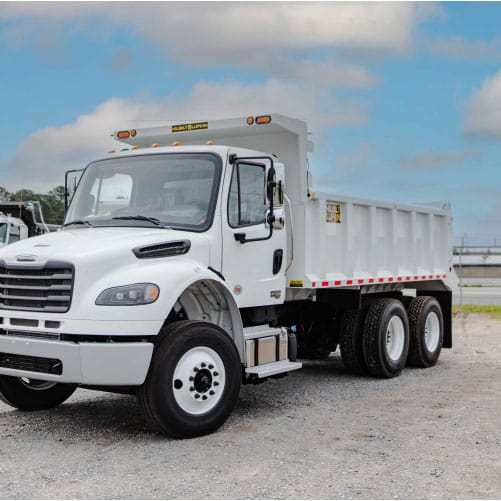

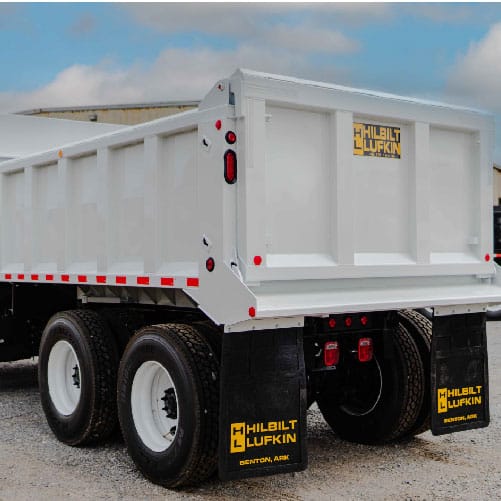

Material Dump Bodies Designed for Sand, Gravel, Asphalt, and General-Use Hauling Jobs
The Lufkin Manufacturing Material Dump Body is our standard dump body designed for sand, gravel, asphalt and general-use hauling jobs. Material Dump Bodies feature vertical side braces continuously welded for maximum strength along with a rugged top rail providing maximum rigidity. Compare the value of the Material Dump Body and you will find an impressive list of standard features available at no additional expense.
Available in Light Duty, Medium Duty & Heavy Duty with optional AR 450 material.
Dump Body Model Resources
Material Dump Body Features
Rear Hinge and Rear Hinge Assembly
Features doubled side plates, greaseable bushings and removable pins
Upper Tailgate Hinge
Built of 3/4” AR 450 steel hinge arms, 3/16” Hi-Tensile steel side plates
Tailgate Latch Assembly
Constructed with a 5/8” AR 450 steel latch arm
Tailgate Hinge Assembly
Case hardened bushing for longer life and a greaseable, removable hinge pin for easier maintenance
